Wiring up extension RJ11 socket

[Sgt_stitch]

 

 

Hi,

im trying to extend my filtered feed to another socket. I have buried a cat5 in the wall and fed into the back of the Openreach mk4 master socket.

I’ve connected up as per top photo

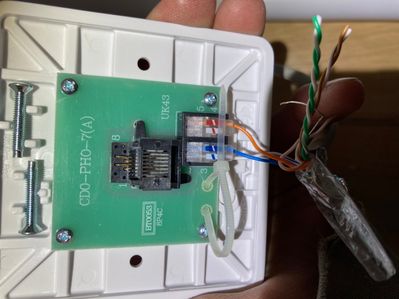

and wired up my rj11 socket As per the second photo

can someone tell me what I’ve  done wrong Please?

 

 

Should I coming from the A@B terminals in the front most faceplate? Is so, what numbers in the RJ11 socket should they connect to?

any help appreciated! 

[Keith_Beddoe]

@Sgt_stitch

Welcome to this user forum.

Who provides your phone and broadband connection?

You must not connect anything to the back of the master socket, that applies to all providers.

This is the guide https://www.openreach.co.uk/orpg/home/helpandsupport/how-toguides/howtoguides/downloads/NTE5C_Instru...

This is the only way you are permitted to connect any extension wiring up, otherwise you risk being charged by your provider, if you have a fault.

[licquorice · Accepted solution]

Yes, you wire from the data extension terminals A&B in the master socket to terminals 3&4 in the RJ11

[Sgt_stitch]

You legend - all wired up as you suggested and working a treat - thank you very much!
