Good morning.
So to just to explain what ive done and how to set it up.
First I backed up my working config from my live and running ER-X, I took my spare ER-X and imported the config, both routers where then identical. Next I went on to remove all of the specific config items to me such as port forward and dyndns leaving you with just a router ready to go, I have left my existing subnets behind as to avoid potentially screwing anything up and also for continuity if you need help.
Important notes:
ER-X Ports:
Eth0 - This is your WAN Port, connect this directly to the ONT
Eth1 - Switch Port
Eth 2 - Switch Port
Eth 3 - Switch Port
Eth 4 - Dedicated IPTV Port, connect IPTV directly to this
---------------------------------------------------------------
You can connect anything to ports Eth1,2 & 3 as these are on the default LAN 192.168.84.0/24, devices connected here will get IP's from the DHCP server serving 192.168.84.10-192.168.84.254. This is where you would connect your normal LAN devices, such as another switch to give your self more ports, to view the ER-X configuration GUI also you will need to connect a laptop/desktop via one of these 3 ports.
You can access the GUI by 192.168.84.1 username is: djayyy
Password I will PM you.
The dedicated Eth4 port has its own subnet and DHCP server, 192.168.85.0/24 so IP's assigned from devices connected to this port will be 192.168.85.10-192.168.85.20 as I only made the scope 10 ips wide, as I dont see a situation where I need more than 10 IPTV devices 🙂
So hook all that up and first check you have internet, for that you will need to connect a laptop via ethernet port 1,2 or 3 and test. I would power down the ONT personally, power it back up again, then once it is on only then power on the new ER-X, wait about 5 minutes, by which point the ER-X should have established a PPPOE session.

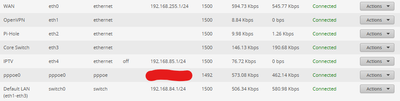

Log into the Router via 192.168.84.1 and you will be faced with a panel showing some bar charts at the top and below that will be the interfaces. Note that PPPOE will be a separate interface so your external IP will be there and not against the WAN interface eth0. An external IP on the PPPOE interface will be great news. Here's a snap of mine.
You'll also spot the switch0 interface, this is just a means of having a single interface to be responsible for those eth1,2,3 ports. No need to worry about that, just thought I would mention. Ive wiped the names off on the test one for you apart from WAN and IPTV. Anyway if there is an IP under that red mark then great.
The other thing to note is that eth0 has an IP assigned to it, 192.168.255.1, this is because the IGMP proxy requires an IP to be on the parent interface, IE the source of the Multicast packets, otherwise it will not work. I actually think this is alot of the issue with PPPOE and IPTV, because PPPOE will be a separate interface attached to the parent WAN interface, the parent WAN does not have an address, so we solve that by just giving it one we wont use outside our other DHCP servers.
Assuming you have you EETV box ready, connect it to eth4 then fully factory reset it and for more clarity over the testing disconnect the TV aerials and setup in IP Mode.
Now, with any luck IPTV is now working.
The reason I have setup eth4 entirely on its own for IPTV with its own DHCP server on a different subnet is basically to simplify the entire IGMP Proxy setup. Often when a proxy is setup you are flooding all ports and therefore the entire network, I figured the most simple way to solve this was to just create a single pipe, from eth0 to eth4. If you want more than one EETV box in theory any switch connected to eth4 will work, this is what I would do if I wanted another TV box, I really cannot be bothered to figure out how to get it working on WIFI, maybe I will one day but folks over on Ubiquiti forums are posting varying results and alot of the time with US TV providers.
You can also download putty and ssh into the switch using its IP and your username and password, once logged in you can issue the following commands and check on multicast traffic.....I posted it a few pages back:
show ip multicast interfaces
show ip multicast mfc
show ip multicast interfaces
Intf BytesIn PktsIn BytesOut PktsOut Local eth0 322.55MB 31923239 0.00b 0 192.168.255.1 eth4 0.00b 0 320.97MB 31922696 192.168.85.1
show ip multicast mfc
Group Origin In Out Pkts Bytes Wrong 234.xx.xxx.xxx 109.xxx.xxx.xxx eth0 eth4 469825 607.57MB 0
This will help for troubleshooting if we need to, I hope not 🙂
I think thats it.
At this point if it works you have a decision to make, keep the ER-X and get a different controller for the Unifi AP/s, you can get a cloudkey for example, remember your Unifi Gateway (Router) has the controller built in so you will lose that by using the ER-X. I have seen on the Ubiquiti forums that with the Unifi Gateways you actually might need to configure the IGMP proxy via a json file and a VLAN. So you can take all the Multicast packets and punt them to a VLAN where the IPTV lives and not the rest of your network, in effect this is what I have done, instead of the json file I have configured the proxy via the CLI baking it into the config and the instead of a VLAN ive used an actual LAN different to my main one.
Anyway, below is the entire router config, I will get the device shipped today and PM you soon.
There is one static IP mapped which was just for the laptop I used to configure it, you can delete this from via the GUI.
firewall {
all-ping enable
broadcast-ping disable
ipv6-receive-redirects disable
ipv6-src-route disable
ip-src-route disable
log-martians enable
name WAN_IN {
default-action drop
description "WAN to internal"
rule 10 {
action accept
description "Allow established/related"
state {
established enable
related enable
}
}
rule 20 {
action drop
description "Drop invalid state"
state {
invalid enable
}
}
}
name WAN_LOCAL {
default-action drop
description "WAN to router"
rule 10 {
action accept
description "Allow established/related"
state {
established enable
related enable
}
}
rule 20 {
action drop
description "Drop invalid state"
state {
invalid enable
}
}
rule 21 {
action accept
description Allow_WAN-Port_Ping
destination {
group {
address-group ADDRv4_pppoe0
}
}
log disable
protocol icmp
}
}
options {
mss-clamp {
interface-type pppoe
mss 1452
}
}
receive-redirects disable
send-redirects enable
source-validation disable
syn-cookies enable
}
interfaces {
ethernet eth0 {
address 192.168.255.1/24
description WAN
duplex auto
pppoe 0 {
default-route force
firewall {
in {
name WAN_IN
}
local {
name WAN_LOCAL
}
}
mtu 1492
name-server auto
password BT
user-id bthomehub@btbroadband.com
}
speed auto
}
ethernet eth1 {
duplex auto
speed auto
}
ethernet eth2 {
duplex auto
speed auto
}
ethernet eth3 {
duplex auto
speed auto
}
ethernet eth4 {
address 192.168.85.1/24
description IPTV
duplex auto
poe {
output off
}
speed auto
}
loopback lo {
}
switch switch0 {
address 192.168.84.1/24
description "Default LAN (eth1-eth3)"
mtu 1500
switch-port {
interface eth1 {
}
interface eth2 {
}
interface eth3 {
}
vlan-aware disable
}
}
}
port-forward {
auto-firewall enable
hairpin-nat enable
lan-interface switch0
wan-interface pppoe0
}
protocols {
igmp-proxy {
interface eth0 {
alt-subnet 0.0.0.0/0
role upstream
threshold 1
}
interface eth4 {
alt-subnet 0.0.0.0/0
role downstream
threshold 1
}
}
}
service {
dhcp-server {
disabled false
hostfile-update disable
shared-network-name IPTV {
authoritative disable
subnet 192.168.85.0/24 {
default-router 192.168.85.1
dns-server 192.168.84.1
lease 86400
start 192.168.85.10 {
stop 192.168.85.20
}
}
}
shared-network-name LAN {
authoritative enable
subnet 192.168.84.0/24 {
default-router 192.168.84.1
dns-server 192.168.84.1
lease 86400
start 192.168.84.10 {
stop 192.168.84.243
}
static-mapping Naylor_Config-Laptop {
ip-address 192.168.84.232
mac-address redacted
}
}
}
static-arp disable
use-dnsmasq disable
}
dns {
forwarding {
cache-size 150
listen-on switch0
}
}
gui {
http-port 80
https-port 443
older-ciphers enable
}
mdns {
repeater {
interface switch0
interface eth4
}
}
nat {
rule 5010 {
outbound-interface pppoe0
type masquerade
}
}
ssh {
port 22
protocol-version v2
}
unms {
disable
}
upnp {
}
}
system {
analytics-handler {
send-analytics-report false
}
crash-handler {
send-crash-report false
}
host-name djayyy-ERX
login {
user djayyy {
authentication {
encrypted-password redacted
plaintext-password ""
}
level admin
}
}
ntp {
server 0.ubnt.pool.ntp.org {
}
server 1.ubnt.pool.ntp.org {
}
server 2.ubnt.pool.ntp.org {
}
server 3.ubnt.pool.ntp.org {
}
}
offload {
hwnat enable
ipsec enable
}
syslog {
global {
facility all {
level notice
}
facility protocols {
level debug
}
}
}
time-zone Europe/London
}
/* Warning: Do not remove the following line. */
/* === vyatta-config-version: "config-management@1:conntrack@1:cron@1:dhcp-relay@1:dhcp-server@4:firewall@5:ipsec@5:nat@3:qos@1:quagga@2:suspend@1:system@5:ubnt-l2tp@1:ubnt-pptp@1:ubnt-udapi-server@1:ubnt-unms@2:ubnt-util@1:vrrp@1:vyatta-netflow@1:webgui@1:webproxy@1:zone-policy@1" === */
/* Release version: v2.0.9-hotfix.7.5622731.230615.0857 */
